1. The Challenge – Hidden Energy Losses and Asset Risks

Industrial and commercial facilities experience significant energy loss through compressed air leaks, steam losses, vacuum issues, mechanical degradation, and electrical faults. These invisible problems reduce efficiency, increase operating costs, and impact reliability. Without modern inspection tools, such issues remain undetected until they become expensive failures.

• Compressed air and gas leaks: Up to 20–30% of generated compressed air is wasted through leaks. A professional ultrasonic leak detection service quickly identifies these losses.
• Steam and vacuum losses: Faulty steam traps and vacuum lines cause substantial inefficiencies. A structured steam leak detection service and vacuum leak detection service restore system performance.
• Mechanical equipment issues: Bearings, motors, and pumps degrade over time. Ultrasound predictive maintenance helps detect faults before they lead to downtime.
• Electrical partial discharges: Corona, tracking, and arcing in high-voltage systems can lead to failures and safety hazards. Early electrical partial discharge detection is essential for risk reduction.

Traditional inspection approaches such as soap testing or manual walkdowns are slow and unreliable. Today, facilities rely on modern industrial leak detection services and acoustic imaging for faster, safer, and more accurate diagnostics.

2. Ultrasound Imaging for Energy Loss & Asset Reliability

At Smart Power Solutions, we use advanced acoustic technology to perform precise imaging of leaks and equipment issues. Our service includes Ultrasound Imaging for Energy Loss, mechanical diagnostics, and electrical assessments using the Fluke ii915 Acoustic Imager.

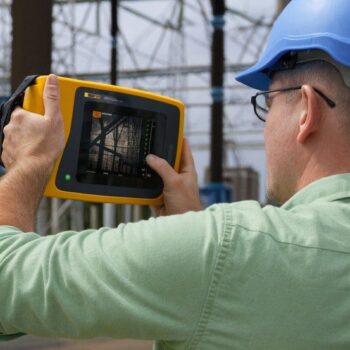

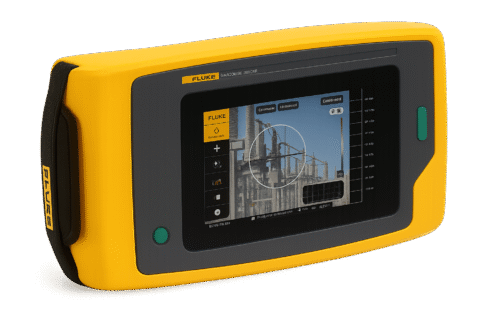

The Fluke ii915 captures ultrasound frequencies and converts them into a high-resolution SoundMap™, enabling an accurate acoustic imaging camera inspection without interrupting production. This provides a fast and reliable industrial energy loss assessment.

• Air & Gas Leak Detection: Identification of compressed air, nitrogen, oxygen, argon, and CO₂ leaks with precise Fluke ii915 leak detection flow estimates.
• Steam & Vacuum Leak Detection: Comprehensive scanning of steam and vacuum systems, suitable even for loud industrial environments.
• Mechanical Diagnostics: Using MecQ™ mode, motors, pumps, bearings, fans, and conveyors are scanned for early signs of wear, supporting acoustic imaging for asset reliability.
• Electrical Discharge Detection: PDQ™ mode detects corona, tracking, and arcing, functioning as a complete corona discharge detection service.

Learn more about the technology behind our inspections on the official
Fluke ii915 product page.

3. Benefits – Cost Reduction, Reliability, and Safety

Our diagnostic approach supports energy efficiency, maintenance planning, and operational safety. With detailed findings and quantified results, this service offers measurable value for industrial facilities.

• Significant Energy Savings: Eliminating steam, compressed air, gas, and vacuum leaks through industrial leak detection services results in substantial recurring reductions in operating costs.
• Improved Reliability: Integrating acoustic inspections with Power Quality Diagnostics and Energy Efficiency Audits supports predictive maintenance and long-term asset performance.
• Safety & Compliance: Early identification of electrical discharge issues helps prevent failures, supporting ESA, IEC, and OSHA requirements.
• Clear Reporting: Each inspection includes SoundMap™ visuals, defect classification, and an ROI-focused action plan for management.

4. Why Smart Power Solutions?

We combine advanced diagnostic tools with deep engineering knowledge to provide accurate and actionable insights for reducing energy loss and improving reliability.

• Technical Expertise: Our team uses ultrasound, power quality analysis (Fluke 1777), and thermal imaging (Fluke Ti480+) to deliver a complete condition assessment.
• Full Project Support: Beyond inspection, we help prioritize repairs and integrate findings with your Energy Optimization & Efficiency Plan.
• Local Service: We provide industrial leak detection services across Toronto and the GTA.
• Safety Focus: All work is performed under strict safety standards with audit-ready documentation.

5. Integration with Your Energy Strategy

Our ultrasound diagnostic service works best when combined with long-term reliability and energy programs. Used together with our Energy Efficiency Audit and Power Quality Services, it becomes a key tool for reducing operational costs and improving uptime.

6. Our 5-Step Ultrasound Imaging Diagnostic Audit

Step 1 – Pre-Audit Review & Target Definition

Before we bring any equipment on site, we perform a structured pre-audit review. Together with your maintenance and energy teams we clarify which systems cause the most concern – compressed air, gas networks, steam distribution, vacuum, rotating equipment or high-voltage rooms. We collect recent utility bills, review existing maintenance logs and define clear objectives for the ultrasound imaging for energy loss program. This preparation ensures that every inspection hour is focused on your most critical assets and that the final report directly supports your reliability and energy efficiency goals.

Step 2 – On-Site Acoustic Survey

During the on-site visit our specialists deploy the Fluke ii915 acoustic imaging camera to scan all agreed areas. We walk your production floor, compressor rooms, boiler house, utility corridors and electrical rooms while your equipment remains fully online. The SoundMap™ overlay immediately highlights leaks, abnormal noise patterns or partial discharge signatures, allowing us to build a geolocated list of findings in real time.

Step 3 – Classification of Defects & Criticality

Each detected issue is classified by type and criticality. Compressed air and gas leaks are ranked by size and estimated leak rate; steam and vacuum losses are tagged by impact on process stability; mechanical anomalies are categorized by severity and risk of failure; partial discharge events are evaluated based on proximity to personnel and equipment. This structured approach turns raw ultrasound imaging data into an actionable risk matrix.

Step 4 – Quantification of Energy Loss & Cost Impact

For all leaks and energy loss points we calculate the associated waste of electricity or fuel using pressure, operating hours and utility tariffs. Mechanical and electrical defects are evaluated in terms of potential downtime, repair cost and impact on production. This financial lens is what transforms ultrasound imaging for energy loss into a decision-making tool for management, not just a diagnostic report.

Step 5 – Corrective Action Plan & Follow-Up

The final step is a clear corrective action plan. For each leak or defect we provide repair recommendations, suggested priorities, and – where relevant – coordination with your maintenance contractor or in-house team. After repairs are completed, a follow-up ultrasound inspection can be scheduled to verify that the energy loss has been eliminated and that the expected savings are being realized.

By following this five-step process, our ultrasound imaging service becomes a repeatable audit framework that you can apply annually or after major changes to your facility.

7. Application Scenarios – Where Ultrasound Imaging Delivers the Most Value

Compressed Air Systems

In most manufacturing plants compressed air is one of the most expensive utilities. Our ultrasonic leak detection service focuses on headers, drops, flexible hoses, quick-connects, isolation valves and poorly sealed equipment. Ultrasound imaging for energy loss allows us to scan large areas quickly, even in noisy environments, and to document every leak with a SoundMap™ image and coordinates so your maintenance team can repair them efficiently.

Process Gases and Vacuum

Many facilities use nitrogen, oxygen, argon or CO₂ as part of their production process. Undetected gas leaks are not only expensive, they may also affect product quality or worker safety. With acoustic imaging camera inspection we locate leaks at flanges, valve stems, manifolds and flexible connections without applying soap solution or shutting down the line. The same technology supports precise vacuum leak detection service in packaging, forming and degassing operations.

Steam Distribution and Condensate Return

Steam traps, control valves and distribution lines are common sources of hidden energy losses. Our steam leak detection service uses ultrasound imaging to identify blowing traps, failed-closed traps and insulation defects. By correcting these issues you reduce fuel consumption, stabilize process temperatures and extend the life of boilers and heat exchangers.

Rotating Equipment and Mechanical Assets

Motors, pumps, fans and conveyors are perfect candidates for ultrasound predictive maintenance. Changes in the ultrasonic sound signature often occur long before vibration levels or temperatures cross alarm limits. By adding regular ultrasound imaging checks to your maintenance routine you can detect bearing damage, lubrication problems and misalignment early and schedule repairs during planned outages instead of emergency shutdowns.

High-Voltage Electrical Equipment

Partial discharge in switchgear, bus ducts, transformers and outdoor substations is a serious reliability and safety risk. With acoustic imaging for asset reliability we can scan live equipment from a safe distance and identify corona, tracking and arcing, even when traditional infrared inspections do not show any temperature rise. This provides an additional layer of protection for your electrical infrastructure and personnel.

8. Measurement, Verification & Integration with Your Energy Strategy

From Detected Leak to Verified Saving

Every ultrasound imaging project includes a clear link between technical findings and financial results. For each compressed air, gas, steam or vacuum leak we estimate the energy loss using pressure, leak size, operating profile and your actual electricity or fuel rates. These calculations follow the same principles used in formal Measurement & Verification (M&V) protocols, so finance and management teams can rely on the numbers.

Synergy with Energy Efficiency Audit

Ultrasound imaging for energy loss is a natural extension of our Energy Efficiency Audit. While the audit looks at overall consumption patterns, tariffs and equipment efficiency, the ultrasound service dives deep into specific systems to uncover real-world losses that are often invisible in high-level data. When combined, both services provide a complete picture – from main utility meter down to individual leaks and mechanical faults.

Synergy with Power Quality and Thermal Imaging

For many facilities, the most robust reliability strategy combines multiple diagnostic tools. Our team can integrate ultrasound imaging with Power Quality Diagnostics and thermal infrared inspections to create a multi-layer condition monitoring program. This approach captures electrical disturbances, overheating components and acoustic anomalies in one coordinated plan, reducing unexpected failures and optimizing maintenance budgets.

Supporting ESG and Sustainability Goals

Reducing avoidable energy losses supports corporate ESG and sustainability targets. By documenting quantified savings from ultrasound imaging projects you can report tangible reductions in electricity and fuel consumption, lower indirect greenhouse gas emissions and demonstrate continuous improvement in energy management practices to shareholders, clients and regulators.
